Two dialogs cover everything about how the platform looks and how you save that look: Theme Colors sets every colour on the chart, and Configuration presets saves those choices as templates you can load, share and bind to a key.

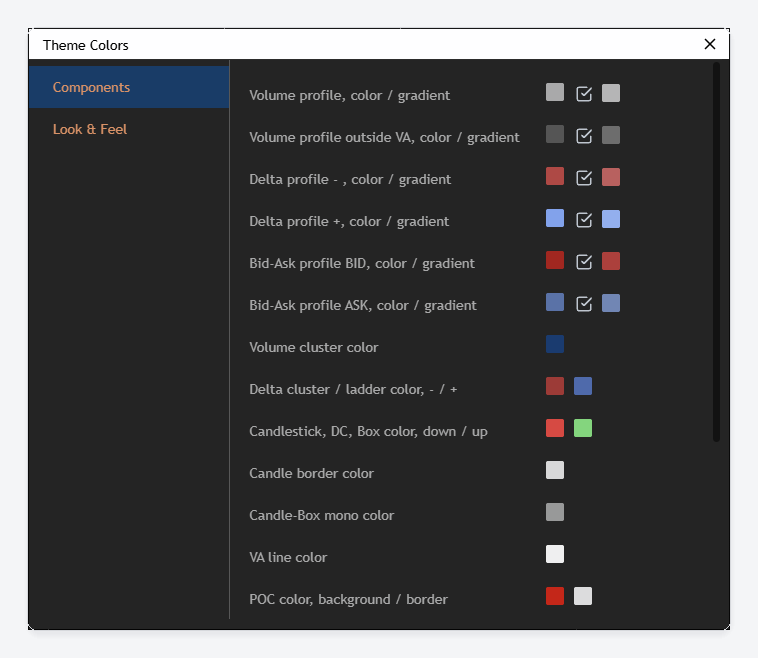

Theme Colors: Components
The Components tab colours the data on the chart. Most entries have two swatches — a base colour and a gradient — with a checkbox between them that turns the gradient on. With it off, the element draws in a flat colour; with it on, it fades between the two, which is what gives profiles their sense of depth.
Volume profile and Volume profile outside VA are coloured separately, so the value area can be made to stand forward from the tails.
Delta profile - and Delta profile + set negative and positive delta. Bid-Ask profile BID and Bid-Ask profile ASK do the same for the two sides of a bid-ask profile.

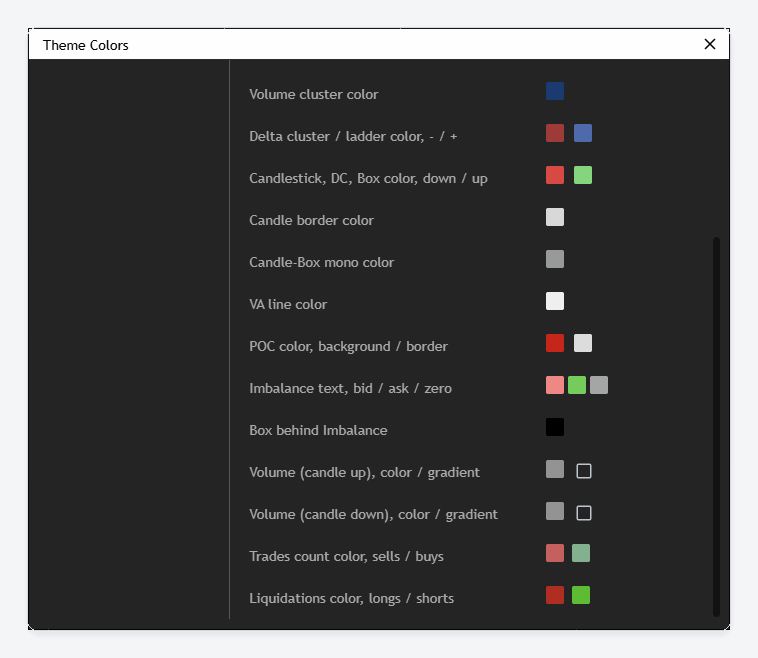

Volume cluster color and Delta cluster / ladder color, - / + handle the cluster views rather than the profiles.
Candlestick, DC, Box color, down / up sets the two candle colours, with Candle border color and Candle-Box mono color for the outline and the monochrome modes.
VA line color and POC color, background / border colour the value area boundaries and the point of control.
Imbalance text, bid / ask / zero takes three colours, one per case, and Box behind Imbalance sets the fill drawn behind an imbalanced level when that option is enabled in Main Settings.
Volume (candle up) and Volume (candle down) colour the volume bars below the chart according to candle direction.
Trades count color, sells / buys and Liquidations color, longs / shorts handle the trade counter and REKT bubbles.

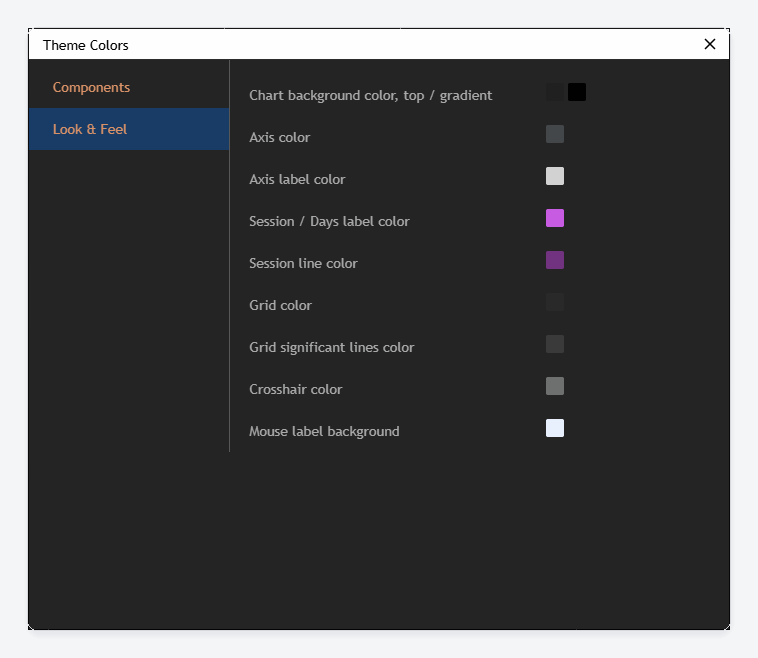

Theme Colors: Look and Feel
Where Components colours the data, Look and Feel colours everything around it.
Chart background color, top / gradient draws the background as a vertical gradient between two colours. Setting both to the same value gives a flat background.
Axis color and Axis label color handle the price and time axes.
Session / Days label color and Session line color colour the session boundaries. These are worth setting to something distinct: session breaks are structural information, and they get lost when they share a colour with the grid.
Grid color and Grid significant lines color are separate, so round numbers and major levels can be drawn more strongly than ordinary gridlines.
Crosshair color and Mouse label background control the cursor and the price label that follows it.

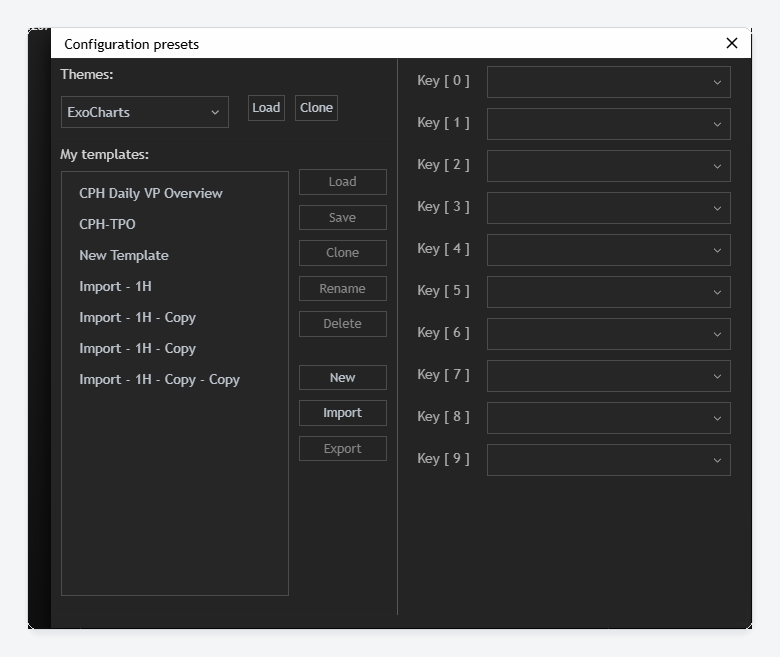

Configuration Presets
This dialog holds two related things: themes, which are colour sets, and templates, which are full chart configurations.
Themes
The Themes dropdown selects a built-in theme. Load applies it. Clone copies it into an editable copy, which is the way to start from a supplied theme and adjust it rather than building one from scratch.
Templates
My templates lists everything you have saved. A template captures the whole chart configuration — cluster mode, indicators, colours, tick size, markers — so loading one switches the entire setup at once.
New creates a template from the current chart. Save writes the current chart back over the selected template. Load applies the selected one. Clone, Rename and Delete manage the list.
Import and Export move templates as files. This is how templates are shared between traders, and how you move your setup to another machine.
Note that web and desktop template formats are not interchangeable. A template exported from the desktop application will not load in the browser, and vice versa.
Hotkeys
Key [ 0 ] through Key [ 9 ] bind a template to a number key. Once bound, pressing the key loads that template immediately, without opening this dialog.
This is the fastest way to work if you read the same instrument several ways — a footprint setup on one key, a TPO setup on another, a clean volume profile on a third — because switching between them costs a keystroke instead of a menu.
